應用范圍:
低壓配電保護系統。訂貨范例:

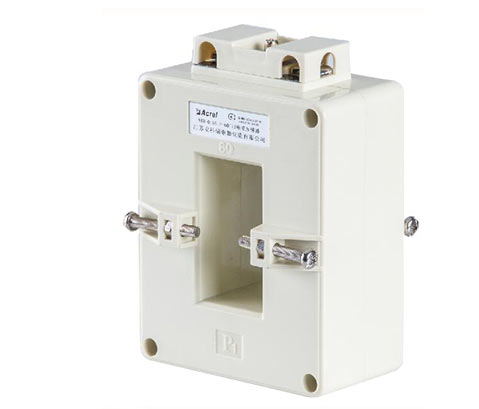

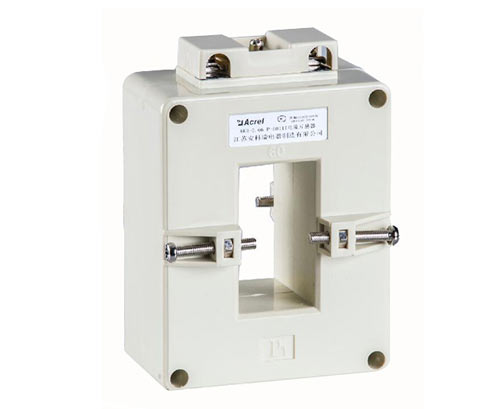

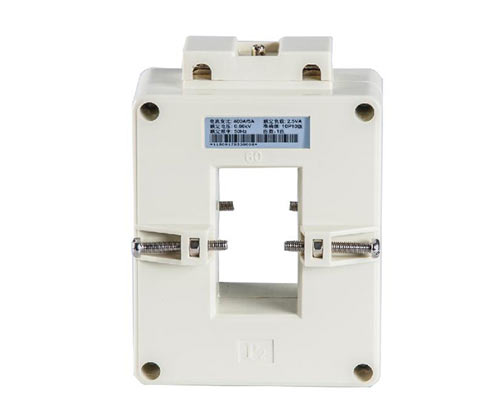

具體型號:AKH-0.66/P P-60III 600/5
規 格 |
額定電流比(A) |
準確級 |
額定負荷(VA) |
安裝方式 |
P-40I |
250/0.05 |
0.5 |
1.25 |
A、C |
P-60I |
800/0.1 |
0.5 |
5 |
|
P-40II |
250-400/5(1) |
10P10 |
2.5 |
|
P-50II |
250-600/5(1) |
2.5 |
||
P-60III |
300-400/5(1) |
2.5 |
C |
|
500-800/5(1) |
5 |
|||
P-80III |
500-800/5(1) |
5 |
D |
|
1000-1500/5(1) |
10 |
規格 |
額定電流比(A) |
準確級及相應額定負荷(VA) |
短時熱電流/(kA) |
額定動穩定電流 /(kA) |
穿心匝數 |
扭距值 |
|||
KGM |
NM |
||||||||
5P5 |
5P10 |
10P10 |
|||||||
P-M8 |
100/1 |
1.5 |
/ |
/ |
7.5 |
18.5 |
直接式 |
7 |
69 |
150/1 |
2 |
/ |
1 |
10 |
25 |
||||
200/1 |
3.75 |
1.0 |
1.5 |
15 |
22.5 |
||||
250/1 |
5 |
1.5 |
2.0 |
18 |
45 |
||||
300/1 |
5 |
1.5 |
2.0 |
21 |
52.5 |
||||
400/1 |
5 |
2.0 |
2.5 |
21 |
52.5 |
||||
P-雙M8 |
5/5(1) |
2.5 |
2.5 |
2.5 |
0.5 |
1 |
直 接 式 |
7 |
69 |
10/5(1) |
2.5 |
2.5 |
2.5 |
1 |
2 |
||||
15/5(1) |
2.5 |
2.5 |
2.5 |
3 |
6 |
||||
20/5(1) |
2.5 |
2.5 |
2.5 |
4 |
8 |
||||
25/5(1) |
2.5 |
2.5 |
2.5 |
5 |
10 |
||||
30/5(1) |
2.5 |
2.5 |
2.5 |
6 |
12 |
||||
40/5(1) |
2.5 |
2.5 |
2.5 |
6 |
12 |
||||
50/5(1) |
2.5 |
2.5 |
2.5 |
6 |
12 |
||||
60/5(1) |
2.5 |
2.5 |
2.5 |
6 |
12 |
||||
75/5(1) |
2.5 |
2.5 |
2.5 |
6 |
12 |
||||
100/5(1) |
2.5 |
2.5 |
2.5 |
10 |
12 |
